- 【High Efficiency】: Microcomputer control technology, a maximum flow rate of 169oz/min and high power of 500W enable it to fill 20-50 cans per minute, which improves working efficiency.
- 【High Accuracy】: Each filling head with a check valve can control the switch in time to prevent liquid backflow. 0.24inch and 0.31inch anti-drip nozzles enable small bottles to be filled with ±1% accuracy to reduce waste.
- 【Easy to Operate】: You can easily control the filling time (0.01-99.99s), waiting time (0.01-99.99s), and counting function, setting (set filling volume), inching (suck out air for easy cleaning), manual (one time, one filling) and automatic modes via the clear buttons on the panel. The one-touch switch allows for easy control.
- 【Six-channel Design】: The speed (0-9) and on/off of the 6 channels can be adjusted individually for flexible and efficient filling.
- 【Memory Function】: The memory function automatically saves the setting parameters in a power failure, saving you the trouble of frequent adjustment.
Description

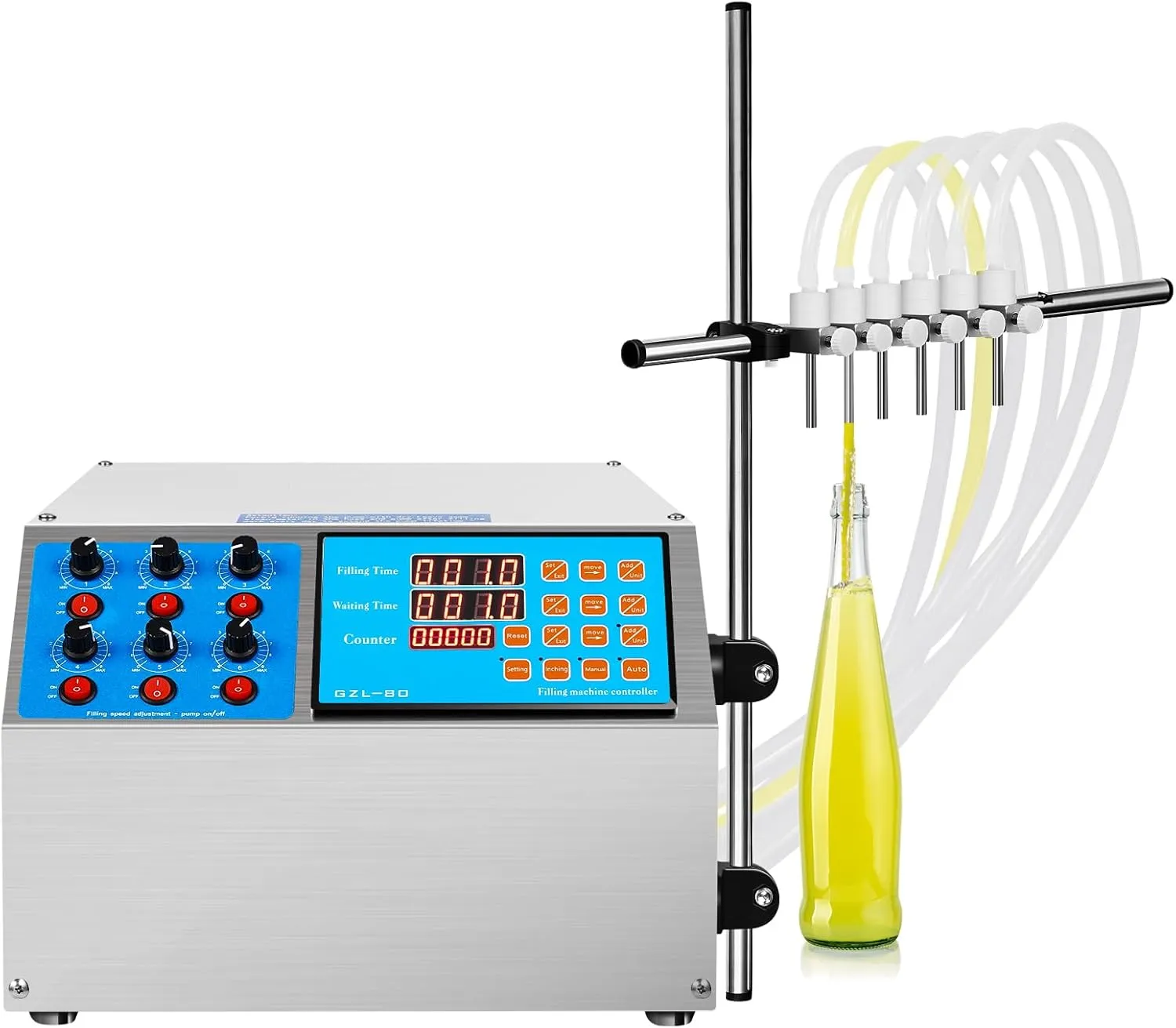

It is a 6-head liquid filling machine made of quality 201 and 304 stainless steel with high strength, precision, flow rate and efficiency. Its unique leak-proof design and powerful diaphragm pump can greatly improve the filling accuracy and save your time. Six independently controllable filling channels and the multifunctional operating panel make it an ideal assistant for conveying liquids!
Application
It is suitable for filling liquid with PH 5-9, little foam, no particles, and low viscosity, for example, mineral water, beverage, food, condiment, daily chemical liquid, etc. It is suitable for bottles with a height of 0.39-11.8inch and a mouth larger than 0.24inch or 0.31inch and is widely used in medical, chemical, food, beverage, oil, cosmetics and other fields.
Specification
Shell Material: 201 Stainless Steel
Tube Material: Silicone
Diaphragm Pump Material: PA, PPS
Nozzle Material: 304 Stainless Steel
Pump Type: Diaphragm Pump
Automation Degree: Semi-automatic
Color: Silver, Blue
Power: 500W
Display Type: LED
Plug Type: American Standard
Voltage: 110V 60HZ
Number of Heads: 6
Filling Volume: 0.3ml-5000ml/0.01-169oz
Filling Capacity: 20-50 Cans/min
Applicable Bottle Height: 10-300mm/0.39-11.8inch
Applicable Bottle Mouth Diameter: ＞6mm/0.24inch, ＞8mm/0.31inch
Maximum Suction Distance: 1.5m/4.9ft
Max. Flow Rate: 5L/min (169oz/min)
Filling Accuracy: ±1%
Liquid PH Range: 5-9
Liquid Temperature Range: 0-50℃
Power-off Memory Function: Yes
Anti-drip Function: Yes
Package Size: 46*40*30cm/18.11*15.7*11.8inch
Product Size: 31*31*21cm/12.2*12.2*8.3inch
Bracket Height: 50.5cm/20inch
Gross Weight: 12.55kg/27.7lbs
Net Weight: 10.25kg/22.6lbs
Package Included
1*Liquid Filling Machine
1*Power Cord
1*Filling Bracket Set
1*Footswitch
1*English Manual
All Accessories Needed for Installation
Notes
1. The diaphragm pump made of PA and PPS is not suitable for strong-corrosive and high-acidity items and essential oil containing concentrations higher than 40% alcohol.
2. The maximum filling speed is about 169oz/min. If you install filling nozzles and filters, it will be smaller (the maximum filling speed is about 2.4oz/s for reference, so we should set the filling speed to the maximum.
3. Please note that manual mode means that the machine will work only when you press the "manual" button once or step on the "foot
