Name: Little Giant WCR-9SS 115 Volt, 4/10 HP, 4800 GPH Sewage/Effluent/Wastewater Collection and Removal System, Steel Cover, Green/Blue, 509082
SKU: 61724

SEWAGE/EFFLUENT SYSTEM: contains 20"x30" basin, steel lid, sewage pump with float switch, PVC discharge piping and elbows, check valve, gromets, adaptors, and PVC elbows (assembly required)

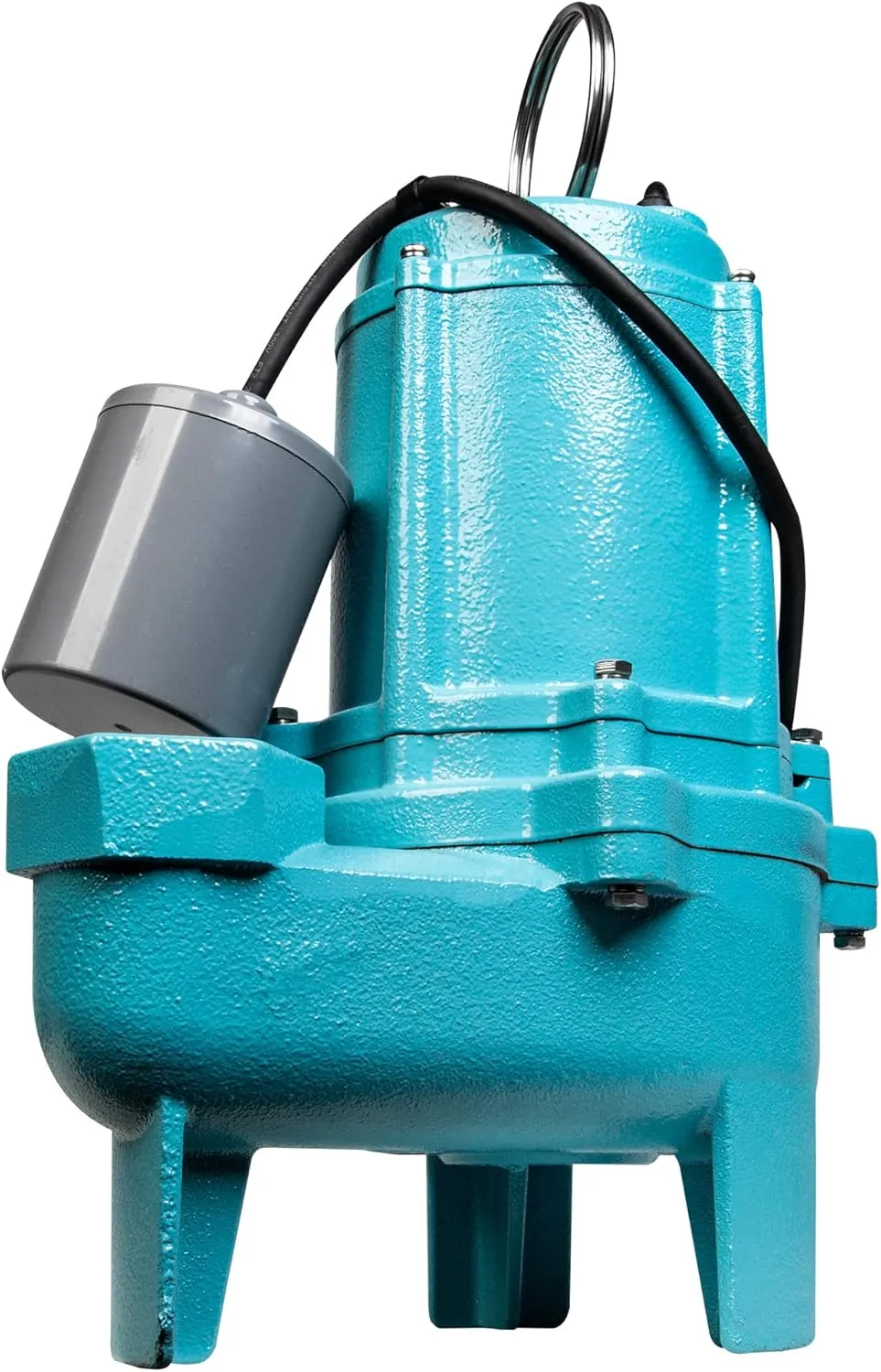

LITTLE GIANT 9SC-CIA-RF SEWAGE PUMP INCLUDED: 115-Volt, 60 Hz, 4/10 HP continuous duty permanent split capacitor (PSC) motor; thermally protected; CSA listed in the USA and Canada
FEATURES: handles up to 2" solids; piping pre-drilled with air-bleed hole; side outlets for electrical cords; molded inlet hub; anti-torque stops; 360° lifting handling; rib design for extra strength
AUTOMATIC OPERATION: equipped with a piggyback mechanical float switch; actives when liquid reaches between 9 and 14 inches; shuts off when liquid falls to between 2 and 6 inches
SPECIFICATIONS: 2" discharge; 2" slip x slip check valve; delivers 6000 GPH at 5-ft. lift; 20-ft. shut-off; 8.7 PSI; 20-ft. cord; epoxy-coated cast iron cover/housing; nylon vortex-style impeller

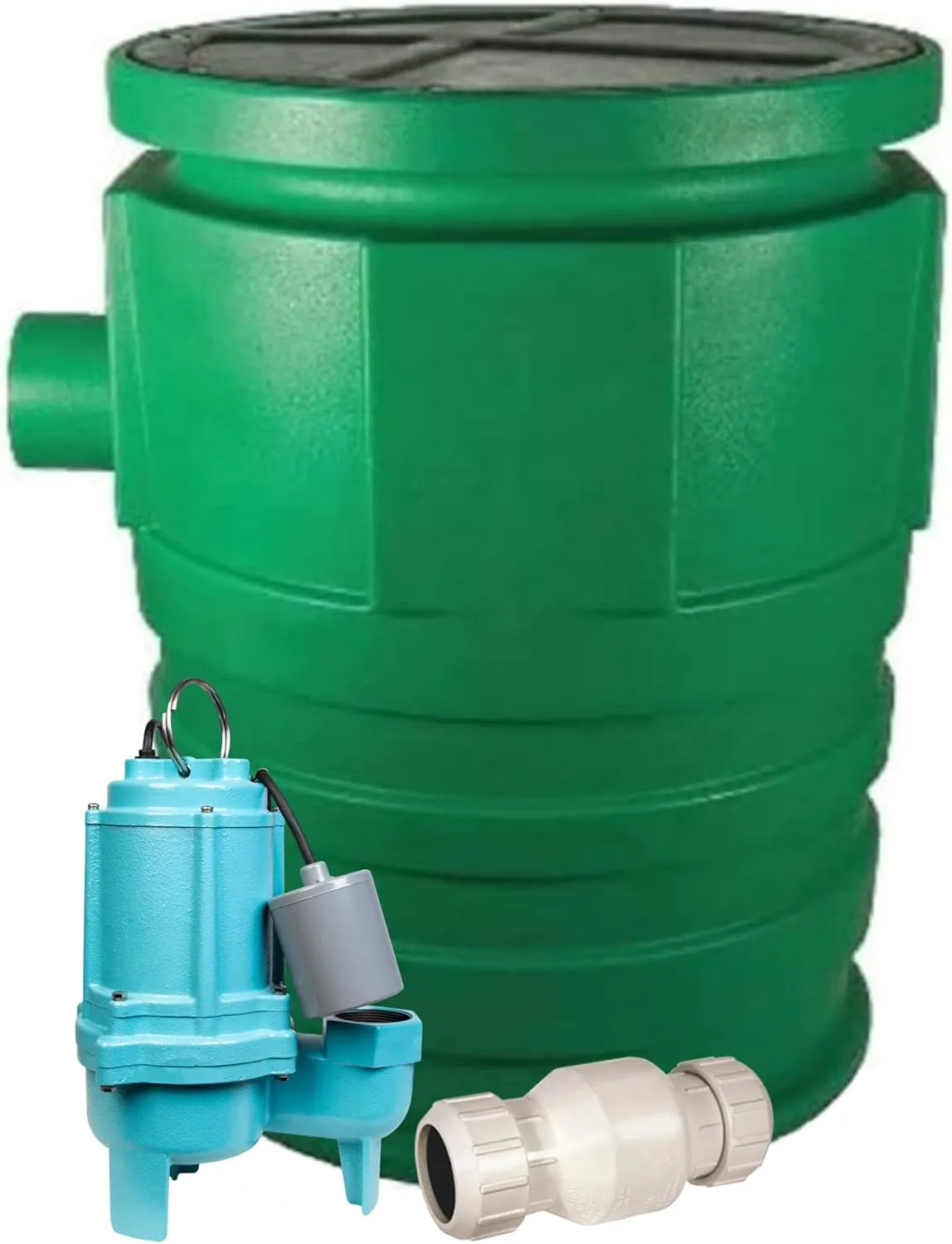

Little Giant's WCR-9SS wastewater system is designed for collection and removal of sewage, effluent or wastewater. The system consists of a 20" x 30" polyethylene basin with a steel cover. The discharge and electrical connections are made through the side of the basin. Once installed, no digging is required for servicing the system. The units are equipped with schedule 40 PVC discharge piping with a pre-drilled air bleed hole and a full flow check valve. The unit is also equipped with a 2" bulkhead fitting to easily route power cords out of the basin. The WCR-9S comes equipped with a 4/10 HP 9S Series wastewater and sewage ejector pump. The pump is features cast iron housing, cover, and volute which has a protective epoxy coating. Automatic operation is achieved by use of a piggyback mechanical float switch.

Little Giant WCR-9SS 115 Volt, 4/10 HP, 4800 GPH Sewage/Effluent/Wastewater Collection and Removal System, Steel Cover, Green/Blue, 509082

Product Details
